2000V Type G-GC Round 3/C Portable Power Cable with TPU Jacket – Specifications, Applications, and Mining Performance Guide

Introduction

In demanding industries such as mining, tunneling, and heavy construction, reliable portable power distribution is not optional—it is mission-critical. Equipment operates continuously under extreme mechanical stress, harsh weather, and abrasive environments. Cable failure in these conditions can lead to costly downtime, safety risks, and operational delays.

The Type G-GC Round 3/C portable power cable is engineered specifically to meet these challenges. Designed for heavy-duty mobile applications, this cable combines high flexibility, robust mechanical protection, and enhanced safety features, making it a preferred solution for mining and industrial operations.

With integrated grounding conductors and a dedicated ground check conductor, this cable ensures safe operation in AC systems where continuous ground monitoring is essential. Its TPU (Thermoplastic Polyurethane) jacket further enhances durability, providing excellent resistance to abrasion, oil, chemicals, and environmental exposure.

This guide provides a comprehensive overview of its applications, construction, technical specifications, and real-world mining performance, helping engineers, procurement professionals, and maintenance teams make informed decisions.

Google Featured Snippet (Quick Answer)

What is a Type G-GC cable used for?
Type G-GC cable is a heavy-duty portable power cable designed for mobile mining equipment such as continuous miners, drills, and shuttle cars. It features flexible stranded conductors, grounding wires, and a ground check conductor to ensure safe operation in harsh environments. Rated up to 2000V and 90°C, it is suitable for both dry and wet conditions, including shallow water submersion.

Applications

The Type G-GC round 3/C cable is widely used in mobile and portable power systems where flexibility and durability are essential.

Typical applications include:

• Continuous miners

• Shuttle cars (AC-powered)

• Roof bolters and drills

• Coal cutters and shearers

• Loading machines and conveyors

• Industrial pumps and dewatering systems

It is especially suitable for:

• Underground mining operations requiring high mechanical durability

• Open-pit and strip mining with long cable runs and frequent movement

• Temporary or portable power distribution systems

• Three-phase AC systems requiring grounding and monitoring

Additionally, the cable is designed to perform reliably in:

• Wet and muddy environments

• Oil-contaminated zones

• Areas exposed to sunlight, ozone, and chemicals

When properly terminated, it can also be used in shallow water submersion scenarios, such as sump pump operations or flooded sections of mines.

Key Features and Benefits

1. Superior Flexibility

The use of finely stranded tinned copper conductors ensures excellent flexibility, making the cable easy to handle and ideal for applications involving frequent movement and reeling.

2. Exceptional Mechanical Strength

The TPU jacket provides:

• High abrasion resistance

• Strong impact resistance

• Protection against crushing and dragging

3. Chemical and Environmental Resistance

Resistant to:

• Oil and grease

• UV radiation and ozone

• Moisture and water ingress

• Industrial chemicals

4. Wide Temperature Range

• Operating range: -40°C to +90°C

• Maintains flexibility even in extreme cold environments

5. Enhanced Safety Design

• Includes grounding conductors for fault current protection

• Features a ground check conductor for continuous monitoring

• Helps prevent electrical hazards in mining operations

6. Long Service Life

Non-wicking materials and robust construction minimize internal degradation, extending operational lifespan even under harsh conditions.

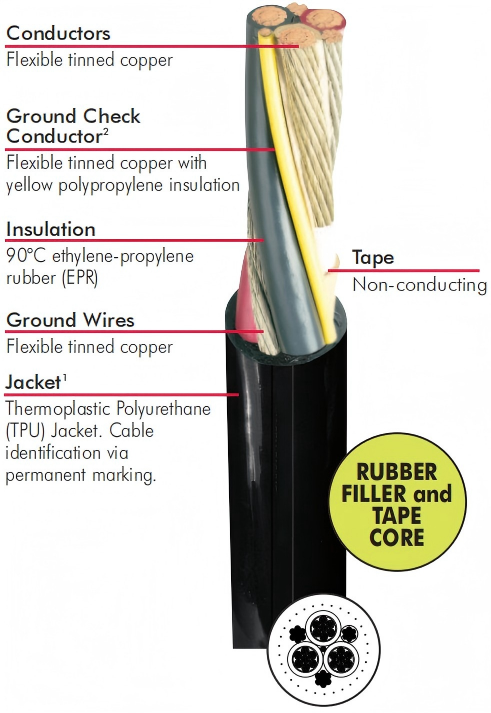

Construction Details

The Type G-GC cable is engineered with multiple layers to ensure performance and durability:

• Conductors:
  Flexible tinned copper for high conductivity and corrosion resistance

• Insulation:
  Ethylene-Propylene Rubber (EPR), rated for 90°C, providing excellent electrical insulation and thermal stability

• Ground Conductors:
  Typically two flexible tinned copper grounding wires for safety

• Ground Check Conductor:
  Insulated with polypropylene (commonly yellow) for monitoring circuit integrity

• Separator Tape:
  Non-conductive tape between conductor and insulation layers

• Assembly:
  Three power conductors, ground wires, and ground check conductor cabled together into a round configuration

• Jacket:
  TPU outer sheath for superior toughness and environmental resistance

Technical Specifications

• Voltage Rating: 2000V

• Conductor Range: Typically 8 AWG to 500 kcmil

• Temperature Rating: Up to 90°C

• Bending Radius: Approx. 6× cable diameter

• Design: Round configuration for improved torsion resistance

• Stranding: Rope-lay or flexible stranded for extended flex life

Ampacity varies depending on conductor size and installation conditions; engineering data should always be consulted for precise selection.

Performance and Durability

The cable is designed for continuous heavy-duty operation in dynamic environments.

Key performance advantages include:

• High resistance to mechanical stress from dragging and reeling

• Flame-retardant and water-resistant properties

• Stable electrical performance under fluctuating loads

• Reliable grounding continuity through integrated design

The ground check conductor plays a critical role in mining safety systems by enabling real-time monitoring, helping detect faults before they escalate into hazards.

Real Mining Application Case

Case Study: Underground Coal Mine – Southeast Asia

In a large underground coal mining operation, shuttle cars and continuous miners were experiencing frequent cable failures due to abrasion and moisture ingress. The previously used cables suffered from:

• Jacket cracking after prolonged dragging

• Reduced flexibility in low temperatures

• Inconsistent grounding performance

After switching to Type G-GC round 3/C cables with TPU jackets, the operation observed:

• 40% reduction in cable replacement frequency

• Improved flexibility during winter conditions

• Enhanced safety due to stable ground check monitoring

• Lower maintenance downtime for mobile equipment

The TPU jacket significantly reduced wear caused by rough mine floors, while the flexible conductor design improved handling during daily operations.

Why Choose Type G-GC Cable?

Choosing the right cable for mining applications is critical to both safety and efficiency. The Type G-GC cable offers a balanced combination of:

• Flexibility for mobile equipment

• Mechanical durability for harsh environments

• Electrical safety through grounding and monitoring

• Long service life to reduce operational costs

It is particularly suitable for professionals who require reliable portable power solutions in high-risk environments.

FAQ (AI Search / GEO Optimized Section)

1. What does G-GC mean in cable types?

G-GC stands for a cable with grounding conductors (G) and a ground check conductor (GC), designed for enhanced safety in industrial and mining applications.

2. What is the difference between Type G and Type G-GC cable?

Type G cable includes grounding conductors, while Type G-GC additionally includes a ground check conductor for monitoring grounding continuity.

3. Can Type G-GC cable be used in wet conditions?

Yes, it is suitable for wet environments and can handle shallow water submersion when properly installed.

4. Why is a ground check conductor important?

It allows continuous monitoring of the grounding system, helping detect faults early and improving operational safety.

5. What industries commonly use Type G-GC cables?

Mining, tunneling, heavy industry, construction, and any application involving mobile electrical equipment.

6. Is TPU better than rubber for cable jackets?

TPU offers superior abrasion resistance, oil resistance, and durability compared to many traditional rubber compounds, making it ideal for harsh environments.

Conclusion

The 2000V Type G-GC Round 3/C portable power cable with TPU jacket is a proven solution for demanding mining and industrial applications. Its combination of flexibility, durability, and advanced safety features ensures reliable performance in even the toughest environments.

For optimal results, always select the appropriate conductor size and verify ampacity based on your specific project requirements.

As next steps, consider exploring:

• Cable installation best practices

• Comparison with Type W and SHD-GC cables

• Reel and handling guidelines for mobile equipment
