Port Crane Cable
The Lifeline of Port Operations
At the heart of every efficient port operation lies a critical component often overlooked – the crane cable. These specialized power and control cables are the lifelines of container handling equipment, ensuring reliable energy transmission and data communication under the most demanding conditions.
🚢 STS Cranes (Ship-to-Shore)
The giants of port infrastructure need cables that can travel hundreds of meters daily on festoon systems while managing high voltage power transmission. PROTOLON medium voltage cables deliver reliable performance for these critical applications.
Voltage:0.6/1 kV Max Speed:240 m/min Tensile Load:30 N/mm²
Temperature:-35°C to +80°C
Torsion:±50°/m

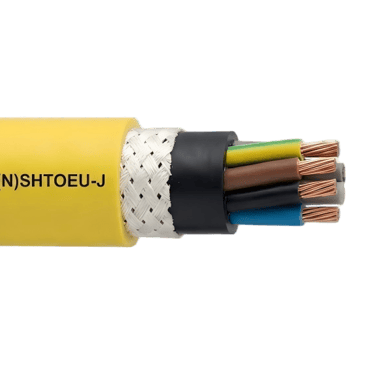

Type:(N)SHTOEU
Why Choose (N)SHTOEU:
Optimized based on DIN VDE 0250-814 standards
Feichun Special sheath system – unique combination of flexibility and robustness
Anti-torsion braid for superior torsional stress resistance
Very finely stranded Class FS conductors for maximum flexibility
Available with integrated fiber optics for data transmission
VDE and GOST-R certified
Proven performance in E-RTG applications worldwide
Best For: High-speed reeling operations on container gantry cranes and E-RTGs where maximum reliability is non-negotiable.

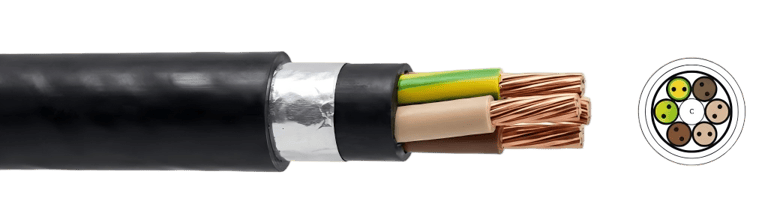

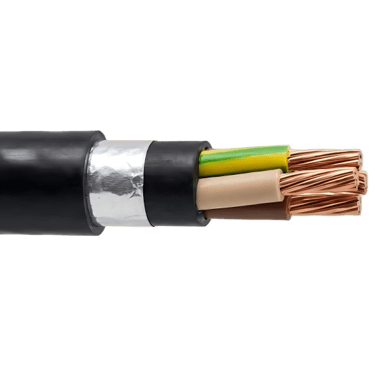

Type:(N)GRDGOEU Voltage:0.6/1 kv Festoon Speed:240 m/min
Tensile Load:15 N/mm² Temperature:-35°C to +80° Torsion:±25°/m
Why Choose (N)GRDGOEU:
Round design perfect for festoon systems and cable tenders
FEICHUN MS insulation for improved mechanical characteristics
Available with overall copper braid shield (FEICHUN(C)-FC) for EMC applications
Superior oil and weather resistance
VDE and GOST-R certified
Also suitable for chain systems (CHAIN) variant)
Best For: Trolley drives, festoon systems, and applications requiring frequent direction changes in a single plane.

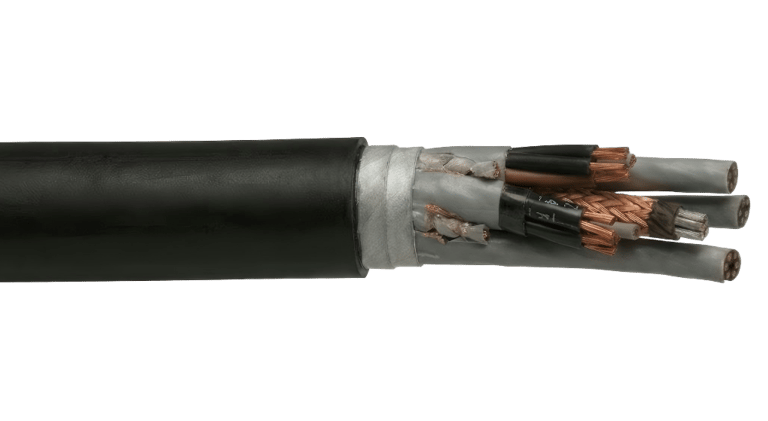

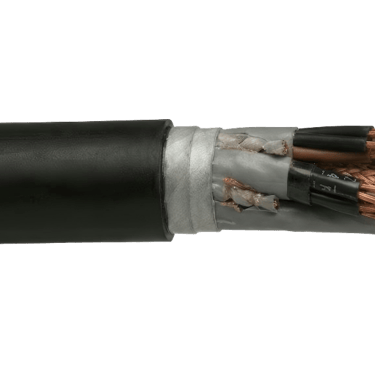

Type:(N)TSCGEWOEU Voltage Range:3.6/6 kV to 12/20 kV Max Speed:240 m/min
Tensile Load:30 N/mm² Temperature:-35°C to +80°C Design:Symmetrical 3-core
Why Choose (N)TSCGEWOEU:
Easy Strip design semiconductive layers for simplified termination
FEICHUN Sandwich double-layer sheath system
Symmetrical 3-core design for excellent EMC performance
Available with integrated fiber optics (SMK)-LWL)
GOST-R certified for international applications
Suitable for up to 30 N/mm² during acceleration
Best For: Large ship-to-shore cranes, high-capacity gantry systems, and applications requiring medium voltage power transmission.
Type:3GSLTOE Voltage:0.6/1 kV Hoist Speed:160 m/min
Support:Aramide element Temperature:-40°C to +80°C Application:Basket operation
Why Choose SPREADERFLEX:
Specially designed bundle construction for basket operation
Aramide support element for vertical loads (safety factor 5 for 50m)
Optimized torsional properties for suspended applications
Available with fiber optic integration for data transmission
Counter-clockwise installation in basket
GOST-R certified
Best For: Spreader cables, grab systems, and vertical reeling applications where the cable must support its own weight.
Why Port Crane Cables Matter
Port crane cables operate in one of the most challenging industrial environments. A cable failure can halt operations, costing thousands per hour. That's why selecting the right cable is critical for port productivity.
Extreme Mechanical Stress
Constant bending, twisting, and tensile loads during operation
High Travel Speeds
Up to 240 m/min on gantry systems
Dynamic Loading
Rapid acceleration and deceleration cycles
Harsh Weather
UV radiation, moisture, salt spray (-35°C to +80°C)
24/7 Operation
Continuous duty cycles with minimal downtime tolerance
Safety Critical
Personnel safety and equipment protection requirements
🏗️ E-RTG Cranes (Electrified Rubber Tyred Gantry)
These eco-friendly cranes require specialized reeling cables that can handle the transition from diesel to electric power while maintaining flexibility during constant movement. Our CORDAFLEX(SMK) cables are field-proven in E-RTG applications worldwide.
Applications in Port Operations
🚢 STS Cranes (Ship-to-Shore)
The giants of port infrastructure need cables that can travel hundreds of meters daily on festoon systems while managing high voltage power transmission. PROTOLON medium voltage cables deliver reliable performance for these critical applications.
📦 Rail-Mounted Gantry (RMG) Cranes
Automated stacking cranes demand cables with integrated fiber optics for real-time communication and precise control systems. Our cables with LWL (fiber optic) integration ensure interference-free data transmission.
⚓ Mobile Harbor Cranes
Versatile handling equipment requires round cables suitable for festoon operation and chain systems with superior abrasion resistance. FEICHUN series provides the perfect solution for these applications.
