Khalifa Port Crane Festoon System – M(StD)HOEU Screened Flat Rubber Cable for High-Temperature Middle East Port Operations

1. Introduction: The Electrical Backbone of Modern Container Terminals

The rapid expansion of container terminals across the Gulf region has placed unprecedented demands on the electrical infrastructure that powers crane operations. As throughput volumes surge and automation accelerates, every component within a crane's power delivery chain must perform without compromise — under blistering sun, coastal humidity, and continuous dynamic stress.

At the heart of this infrastructure lies the festoon cable system: the flexible, traveling power and signal link that follows the crane trolley across its full span of travel. Unlike static cable installations, festoon cables are subjected to continuous mechanical cycling, environmental assault, and strict electromagnetic compatibility requirements. The choice of cable directly determines whether a crane operates reliably for decades — or becomes a maintenance liability.

In the harshest port environments of the Middle East, the M(StD)HOEU screened flat rubber festoon cable has established itself as a technically sound solution for demanding crane power applications. This article examines its design architecture, performance characteristics, and engineering value in the context of real-world port crane operations at Khalifa Port, Abu Dhabi.

2. Khalifa Port: A World-Class Terminal Demanding World-Class Components

Located in Abu Dhabi, UAE, Khalifa Port is one of the most advanced and strategically significant container terminals in the Middle East. Designed as a deep-water, semi-automated port, it serves as a critical logistics gateway connecting trade flows between Asia, Europe, and Africa — handling millions of TEUs annually and continuously expanding its capacity.

Khalifa Port operates a fleet of high-specification crane equipment across its container handling operations, including Ship-to-Shore (STS) cranes for vessel loading and discharge, Rail Mounted Gantry (RMG) cranes for automated container yard stacking, Automated Stacking Cranes (ASC) within the semi-automated terminal zones, and container transfer systems coordinating intermodal logistics flows.

These machines operate continuously in one of the world's most challenging environments: ambient temperatures regularly exceeding 45°C in summer months, intense UV radiation, salt-laden coastal air, wind-driven sand and dust, and the ever-present contamination from hydraulic fluids and lubricants inherent to heavy crane machinery.

Under these conditions, standard industrial cables fail prematurely — their sheaths crack under UV exposure, insulation degrades under thermal stress, and conductors suffer fatigue failures from repeated bending cycles. Khalifa Port's operational model demands components engineered specifically for this combination of stresses, making cable selection a critical engineering decision rather than a commodity procurement.

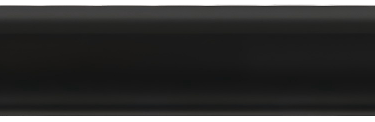

3. Cable Overview: M(StD)HOEU Screened Flat Rubber Festoon Cable

The M(StD)HOEU is a screened, flexible, flat rubber cable engineered specifically for festoon system applications in accordance with DIN VDE 0250-809 — the internationally recognized standard for rubber-insulated cables used in crane and hoisting gear installations.

Its rated voltage of 0.6/1 kV positions it squarely within the power supply requirements of crane trolley motor circuits and associated control systems. The cable's design integrates individual screening per core — a feature that places it above unscreened alternatives in environments where electromagnetic interference from variable frequency drives (VFDs) and power electronics can corrupt control signals.

Three characteristics define its suitability for port crane festoon applications: mechanical resilience under continuous dynamic cycling, environmental resistance across the full Gulf climate spectrum, and stable electrical performance under electromagnetic stress. Each of these is addressed through deliberate material and structural choices in the cable's construction.

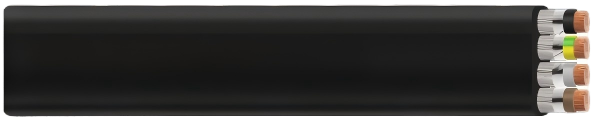

4. Structural Design: Every Layer Engineered for a Purpose

4.1 Fine Stranded Copper Conductors

The conductor architecture of the M(StD)HOEU is optimized for mechanical endurance rather than static load efficiency. For cross-sections up to 25 mm², Class 6 finest stranded wires are specified in accordance with DIN EN/IEC 60228. For larger cross-sections from 35 mm² and above, Class 5 fine stranded wires are used.

This distinction is significant: finest stranding maximizes the number of individual wire filaments within a conductor bundle, distributing the mechanical stress of repeated bending across a greater number of contact points. In festoon applications where a cable may undergo hundreds of thousands of bending cycles over its service life, Class 6 stranding is not a luxury — it is a fundamental requirement for sustained conductor integrity. All conductors are manufactured from plain copper, offering the optimal combination of conductivity, solderability, and fatigue resistance for dynamic cable applications.

4.2 EPR Insulation — Elastomeric Performance Under Thermal Stress

Individual cores are insulated with EPR (Ethylene Propylene Rubber) compound type 3GI3, meeting the requirements of DIN VDE 0207-20. EPR is the insulation material of choice for demanding rubber cable applications, offering a technically superior profile compared to PVC or XLPE alternatives in dynamic high-temperature environments.

EPR maintains its elastic properties across a wide temperature range, resisting both cold-weather embrittlement and high-temperature softening. Its ozone resistance prevents surface cracking — a failure mode that afflicts conventional rubber insulations in coastal and industrial atmospheres. In crane festoon applications where the cable is suspended outdoors and subjected to electrical stress, thermal cycling, and ozone, EPR insulation provides the stability that enables long service life. Core identification follows DIN VDE 0293-308, ensuring consistent color coding for safe installation and maintenance procedures.

4.3 Flat Parallel Core Arrangement

The cores and pairs within the M(StD)HOEU are arranged in parallel, forming the characteristic flat cable profile that gives festoon cables their operational advantage. For signal pairs, twisted pair geometry is maintained within the flat arrangement, with fillers used to achieve dimensional stability and a consistent cross-section.

The flat profile is not simply a convenience — it is an engineering solution. When a flat cable runs through festoon trolley carriages, it lies flat and bends consistently in a single plane. This contrasts with round cables, which are prone to twisting, torsional stress, and uneven wear as they travel through festoon systems. The flat geometry ensures that bending stresses are distributed predictably, that no torsional loads develop, and that the cable tracks smoothly and reliably through the entire festoon system length.

4.4 Individual Electromagnetic Screening

Each core or pair is individually screened using an aluminium-backed polyester foil combined with a spinning of tinned copper wires providing coverage exceeding 85%. This dual-layer screening architecture delivers high-efficiency electromagnetic shielding.

The polyester foil provides a continuous barrier against capacitively coupled interference, while the tinned copper wire layer offers low-resistance conductive coverage for magnetically coupled noise rejection. Together, they ensure that power cores do not radiate interference into signal cores — and that signal pairs remain immune to external electromagnetic fields from nearby power cables, VFD outputs, or switching equipment. Tinning of the copper wires preserves conductivity over the cable's service life, resisting oxidation that would degrade shield effectiveness in humid coastal environments.

4.5 Heavy Duty Rubber Outer Sheath

The outer sheath is manufactured from a heavy duty rubber compound type 5GM3, compliant with DIN VDE 0207-21, and supplied in black with inkjet marking. This sheath formulation is engineered for the combination of physical and chemical stresses encountered in port crane environments.

The rubber compound provides resistance to mechanical abrasion from trolley contact, flexibility at low temperatures for cold-start conditions, resistance to oils and hydraulic fluids, and UV stability for outdoor crane installations. Black coloration incorporates carbon black which functions as an effective UV stabilizer, protecting the sheath from photochemical degradation under intense Middle East solar radiation.

5. Performance Parameters: Quantified Capability for Port Engineering

5.1 Thermal Performance

The cable's thermal parameters span the full range of Gulf port operating conditions. For festoon operation, the ambient temperature range runs from -30°C to +80°C. The maximum permissible conductor temperature reaches 90°C, and the maximum short-circuit conductor temperature is rated at 250°C.

The 90°C conductor temperature rating ensures that the cable can carry its rated current loads even when ambient temperatures push above 45°C and the cable is exposed to direct solar radiation. The 250°C short-circuit temperature provides a critical margin of safety, allowing the protection system time to clear fault conditions without conductor damage that could compromise insulation integrity.

5.2 Mechanical Performance

Two mechanical parameters define the M(StD)HOEU's suitability for festoon crane applications. The maximum tensile load on the conductor is rated at 15 N/mm², and the trolley travel speed is supported up to 180 m/min.

The 15 N/mm² tensile rating ensures that the cable can support its own weight across festoon spans without conductor elongation or structural fatigue — a parameter that determines the maximum unsupported festoon length achievable. The 180 m/min travel speed rating is particularly relevant for high-speed STS crane trolleys at Khalifa Port, confirming that the cable can withstand the acceleration and deceleration forces associated with rapid trolley positioning without mechanical failure.

5.3 Bending Radius

Installation and operational bending radii are defined relative to the cable height (H). For fixed installation with cable height up to 12 mm, the minimum bending radius is 3xH; for heights over 12 mm it increases to 4xH. For flexible applications including festoon operation, the minimum bending radius is 4xH for cable heights up to 12 mm, and 5xH for heights over 12 mm.

These specifications guide the mechanical design of festoon trolley systems and cable management arrangements, ensuring that installed bending radii remain within the cable's fatigue endurance limits throughout the system's design life.

6. Environmental Resistance: Engineered for Gulf Port Conditions

6.1 Oil and Chemical Resistance

Compliance with DIN EN/IEC 60811-404 oil resistance testing confirms that the cable's sheath and insulation materials maintain their mechanical properties after exposure to mineral oils, hydraulic fluids, and lubricating greases. In crane machinery environments where hydraulic lines, gearboxes, and wire rope lubricants are omnipresent, this resistance is not optional — it is a baseline requirement for sustained cable integrity.

6.2 UV and Weather Resistance

The cable carries unrestricted outdoor approval, with resistance to ozone, UV radiation, and moisture confirmed through compliance with recognized test protocols. The combination of the EPR insulation chemistry and the heavy duty rubber outer sheath provides stable material properties under prolonged UV exposure — a critical factor for STS crane installations where the festoon cable is suspended in full sunlight for the majority of its service life at Khalifa Port.

6.3 Fire Behavior

Flame propagation resistance is confirmed in accordance with DIN EN/IEC 60332-1-2, ensuring that in the event of an electrical fault, the cable does not propagate flame along its length — a fundamental safety requirement for crane installations where cable runs pass through multiple crane structural zones.

7. Application Map: Where M(StD)HOEU Is Deployed in Port Crane Systems

The cable's technical specification makes it appropriate for multiple positions within port crane electrical systems. In STS crane trolley festoon systems, it serves as the primary power supply to hoisting motor drives, traveling along the full crane bridge span with trolley movement at operating speeds up to 180 m/min. In hoisting motor power supply applications, it connects VFD output to hoisting motor terminals, requiring both mechanical flexibility and EMC screening to prevent drive-generated interference from affecting control systems.

For control and signal transmission, screened pairs within the cable structure carry control signals between trolley-mounted equipment and crane PLC systems, benefiting directly from individual core screening. In Rail Mounted Gantry crane festoon systems, the cable serves as the moving trolley power cable across automated yard crane bridges, operating continuously in outdoor conditions. For Khalifa Port's semi-automated terminal zones, it also supports automated stacking crane bridge festoon applications carrying both power and signal for automated stacking operations.

8. Engineering Value: Lifecycle, Reliability, and Safety

8.1 Lifecycle Economics

The engineering value of a festoon cable extends well beyond its purchase price. In port crane operations, unplanned downtime carries disproportionate costs — lost vessel productivity, port throughput delays, and emergency maintenance mobilization. A cable that fails prematurely through insulation cracking, conductor fatigue, or sheath degradation creates operational disruption whose cost far exceeds the cable replacement cost itself.

The M(StD)HOEU's material specification and construction standard are designed to deliver sustained performance across the service intervals typical of premium festoon cable installations. The combination of finest stranded conductors, EPR insulation, and heavy duty rubber sheathing creates a cable whose mechanical and chemical degradation rates are low relative to the operating environment — extending the interval between planned replacements and reducing the probability of in-service failures.

8.2 Reliability Through Design

Reliability in festoon applications is primarily determined by resistance to cumulative mechanical fatigue. Every bending cycle introduces stress into the conductor strands and insulation materials. Over millions of cycles across a crane's operational life, cables that lack adequate mechanical design accumulate damage that eventually manifests as conductor breakage or insulation failure.

The M(StD)HOEU's Class 6 finest stranded conductors, elastic EPR insulation, and dimensionally stable flat construction collectively minimize the per-cycle damage accumulation rate. The result is a cable that reaches a given number of bending cycles with significantly less accumulated damage than alternatives with coarser conductor stranding or less flexible insulation materials.

8.3 Electrical Safety and EMC

Individual core screening at greater than 85% coverage provides a robust barrier against electromagnetic interference in both directions: it prevents the cable from radiating noise into adjacent systems, and it protects signal cores from external interference sources. In modern crane systems where VFD-controlled motors generate significant high-frequency switching noise, this shielding is essential for reliable control system operation.

The cable's electrical parameters — rated voltage 0.6/1 kV, maximum AC operating voltage 0.7/1.2 kV, maximum DC operating voltage 0.9/1.8 kV — provide an appropriate safety margin relative to the operating voltages of typical crane power circuits. The 3.5 kV/5 min AC test voltage confirms the insulation integrity standard to which each cable is tested before dispatch.

8.4 Compliance and Certifications

The cable carries the CE mark in compliance with the Low Voltage Directive 2014/35/EU and meets the requirements of the Construction Products Regulation CPR 305/2011. RoHS compliance under 2015/863/EU confirms freedom from restricted hazardous substances. These certifications confirm that the cable meets the regulatory requirements applicable to port crane installations in international terminal operations, including those subject to European standards and international procurement frameworks.

9. Specification Guidance for Port Engineers

When specifying festoon cables for crane applications at ports such as Khalifa Port, the following technical criteria should be systematically evaluated. Conductor stranding class should be Class 6 (finest stranded) for cross-sections up to 25 mm² in festoon applications. Insulation material should be EPR for temperature range, ozone resistance, and long-term elasticity. Screening architecture should provide individual core screening with tinned copper coverage exceeding 85%. Sheath material should be a heavy duty rubber compound with confirmed oil and UV resistance. Cable geometry should be flat parallel construction to ensure single-plane bending. Standard compliance with DIN VDE 0250-809 is the baseline for festoon cable applications. Oil resistance testing should meet DIN EN/IEC 60811-404. Trolley travel speed rating should be a minimum of 180 m/min for high-speed STS crane applications.

The mechanical parameters must be verified against the specific festoon system geometry: span length, trolley speed, festoon carriage spacing, and cable support arrangement all influence the actual service stresses experienced by the cable. Minimum bending radius requirements must be respected in trolley and festoon guide design.

10. Conclusion: A Cable Specification Matched to Port Crane Engineering Reality

Modern container terminals such as Khalifa Port operate at the intersection of high-throughput demand and extreme environmental stress. The electrical infrastructure supporting their crane operations must match this operational profile — not in approximate terms, but precisely.

The M(StD)HOEU screened flat rubber festoon cable addresses the specific combination of challenges present in Gulf port crane applications: the mechanical demands of continuous festoon cycling at high trolley speeds, the thermal and UV exposure of outdoor crane installations in a desert coastal climate, the chemical exposure of an active machinery environment, and the electromagnetic complexity of modern VFD-controlled crane drive systems.

Its construction — finest stranded copper conductors, EPR insulation, flat parallel core arrangement, individual tinned copper screening above 85%, and heavy duty rubber outer sheath — reflects deliberate engineering decisions at each layer. Its performance parameters — 90°C conductor temperature, 180 m/min trolley travel speed, and oil resistance certification — confirm its fitness for purpose in demanding port crane festoon applications.

For port engineers specifying crane cable systems at Khalifa Port and equivalent Gulf terminals, the M(StD)HOEU represents a technically defensible choice: a cable designed to the standard its application demands, capable of supporting reliable crane operation across a service life measured in years rather than months.
