What Is TYPE SHD-GC 3/C 15kV TPU Cable? The Complete Guide for Mining, Mobile Equipment, and Harsh Industrial Power Systems

What Is TYPE SHD-GC 3/C 15kV Cable?

TYPE SHD-GC 3/C 15kV cable is a shielded, heavy-duty, medium-voltage portable power cable specifically engineered for extreme industrial environments such as underground mining, tunneling, ports, and large-scale material handling systems.

The designation breaks down as follows:

• SHD: Shielded Heavy Duty

• GC: Ground Check

• 3/C: Three power conductors

• 15kV: Rated for up to 15,000 volts

Unlike standard industrial cables, SHD-GC cables are designed not just for power transmission, but for continuous movement, mechanical abuse, and high safety requirements. They are commonly used to power mobile equipment like longwall shearers, continuous miners, pumps, and conveyors—where failure is not just costly, but dangerous.

Google Featured Snippet

TYPE SHD-GC 3/C 15kV cable is a medium-voltage, shielded portable power cable with three conductors and a ground check system. It is widely used in mining and heavy industry to supply power to mobile equipment, offering high flexibility, durability, and resistance to abrasion, moisture, and chemicals.

Where SHD-GC 15kV Cables Are Used

These cables are built for dynamic, high-stress environments where both electrical performance and mechanical durability are critical.

Core applications

• Underground mining systems (continuous miners, longwall systems)

• Surface mining and quarry equipment

• Heavy-duty mobile machinery (drills, pumps, conveyors)

• Port and bulk material handling operations

• Temporary or relocatable power distribution networks

• Tunneling and infrastructure projects

• Wet and partially submerged environments

Long-tail keyword integration

In real-world search behavior, this cable is often associated with:

• 15kV mining power cable for mobile equipment

• heavy duty portable cable for conveyors and pumps

• medium voltage cable for underground mining

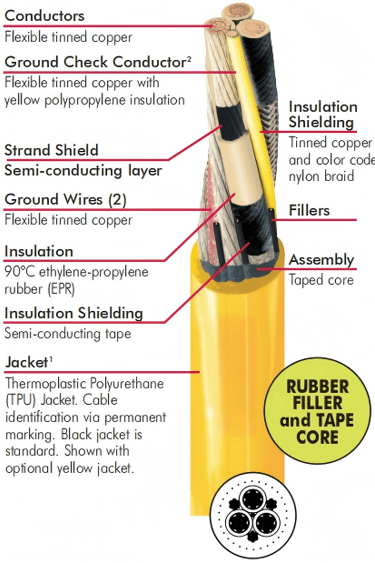

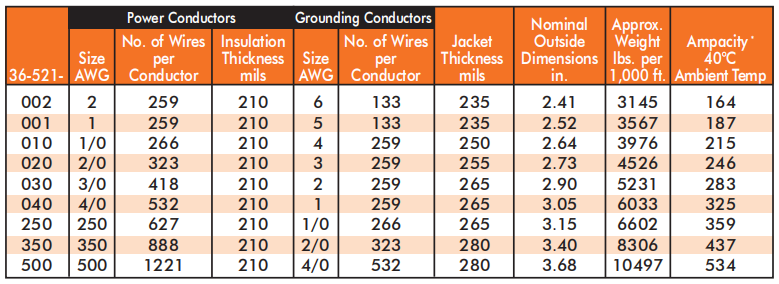

Construction of TYPE SHD-GC 3/C Cable

The durability and performance of SHD-GC cables come from a multi-layer engineered structure, where each component serves a critical function.

Conductors: Flexible Tinned Copper

SHD-GC cables use finely stranded, tinned copper conductors designed for flexibility and longevity.

Why it matters:

• Fine stranding improves bending performance during reeling and trailing

• Tin coating protects against corrosion in humid and chemically aggressive environments

• Maintains conductivity even after repeated mechanical stress

This is essential in mining, where cables are constantly dragged, bent, and repositioned.

Grounding System: G + GC Design

One of the defining safety features is the grounding configuration:

• Two grounding conductors (G)

• One ground check conductor (GC)

The ground check conductor continuously monitors the integrity of the grounding circuit. If the system detects a break or fault, it can trigger an automatic shutdown.

This feature is critical in mining operations, where damaged cables could otherwise lead to:

• Electric shock hazards

• Equipment damage

• Fire or arc faults

Insulation System: EPR (Ethylene Propylene Rubber)

Each conductor is insulated with EPR, rated for 90°C continuous operation.

Key properties:

• Excellent dielectric strength for medium voltage applications

• Resistance to electrical treeing and partial discharge

• Thermal stability under fluctuating loads

EPR is widely used in medium voltage cables because it maintains insulation integrity even under high electrical stress and harsh environmental conditions.

Shielding System: Electrical Stress Control

SHD-GC cables include a layered shielding system:

• Semi-conductive conductor shield

• Insulation shield (tape + metallic shield + braid)

This design:

• Ensures uniform electric field distribution

• Reduces electromagnetic interference (EMI)

• Prevents insulation breakdown

Shielding becomes essential at 15kV because uncontrolled electrical stress can lead to premature failure.

Fillers and Core Assembly

Fillers and binders are used to maintain the cable’s shape and structural balance.

Benefits include:

• Consistent round geometry

• Improved flexibility

• Better resistance to crushing and deformation

Outer Jacket: TPU (Thermoplastic Polyurethane)

The outer jacket is one of the most critical elements in harsh environments.

TPU provides:

• Exceptional abrasion resistance (ideal for rocky mine floors)

• Resistance to oil (तेल), chemicals, and industrial fluids

• High impact resistance

• Flexibility even in low temperatures

Compared to traditional materials, TPU significantly extends cable lifespan in dynamic mining applications.

Key Features and Performance Advantages

SHD-GC 15kV TPU cables offer a combination of electrical, mechanical, and environmental advantages:

• Rated up to 15,000 volts for medium voltage systems

• उत्कृष्ट flexibility for trailing and reeling operations

• مقاومة abrasion, الزيت, and chemicals

• उत्कृष्ट mechanical durability under crushing and impact

• Suitable for shallow water exposure and wet environments

• Integrated ground check system for enhanced safety

• Long service life in high-movement applications

Why TPU Jacket Outperforms PVC and CPE

Choosing the right jacket material directly impacts performance and lifecycle cost.

TPU vs PVC

• TPU offers significantly higher abrasion resistance

• PVC becomes brittle in low temperatures

• TPU maintains flexibility and durability over time

TPU vs CPE

• TPU has better tear resistance under mechanical stress

• Improved oil and chemical resistance

• Longer lifespan in dynamic applications

Practical impact

In mining environments, switching to TPU often results in:

• Reduced cable replacement frequency

• Lower maintenance costs

• Improved operational uptime

This is why TPU is widely considered the best jacket material for flexible mining cables.

Temperature and Environmental Performance

SHD-GC cables are designed for extreme environmental adaptability.

• Maximum conductor temperature: 90°C

• Performs in wet, muddy, خشک (dry), and chemically exposed environments

• Resistant to UV (for surface operations)

• Handles repeated mechanical stress

They are also suitable for temporary shallow submersion, such as in flooded mine sections or drainage areas.

SHD-GC vs Other Mining Cables

SHD-GC vs Type W Cable

• Voltage: SHD-GC (medium voltage), Type W (low voltage)

• Shielding: Present in SHD-GC, absent in Type W

• Application: SHD-GC for high-power mining systems

SHD-GC vs G-GC Cable

• SHD-GC includes ground check conductor

• G-GC lacks active monitoring capability

• SHD-GC is preferred for safety-critical environments

Installation and Handling Best Practices

Even the most robust cable can fail if improperly handled.

Key guidelines

• Use controlled reeling systems

• Maintain recommended bending radius

• Avoid twisting (torsion) during installation

• Limit excessive pulling tension

• Store in dry, shaded environments

Proper handling can extend cable life by 30–50% in mining operations.

Selection Criteria for 15kV SHD-GC Cable

Choosing the right cable involves multiple factors:

• Voltage rating and system compatibility

• Environmental exposure (water, तेल, chemicals, abrasion)

• Mechanical stress and movement frequency

• Installation method (trailing, reeling, fixed)

• Compliance with mining safety standards

Industry Standards and Compliance

SHD-GC cables are typically manufactured to meet:

• ICEA standards for portable power cables

• MSHA requirements for mining safety

• UL and CSA certifications (depending on region)

Compliance ensures reliability, safety, and acceptance in regulated industries.

Real Mining Application Cases

Case 1: Underground Coal Mine (Southeast Asia)

A coal mining operation experienced frequent failures with rubber-jacket cables used on longwall shearers.

Problems:

• Severe abrasion from sharp coal and rock

• Frequent cable dragging

• High downtime due to sheath damage

Solution:

Switch to SHD-GC 3/C 15kV TPU cable.

Results:

• 40% increase in service life

• Significant reduction in unplanned downtime

• Improved safety due to ground check monitoring

Case 2: Copper Mine Conveyor System (South America)

A large open-pit copper mine required reliable power for long-distance conveyor systems.

Challenges:

• Constant movement and tension

• Exposure to तेल and dust

• High mechanical stress

Outcome:

• TPU jacket reduced wear from conveyor structure contact

• Cable replacement cycles extended

• Maintenance costs reduced

Case 3: Port Bulk Handling System

A port handling coal and ore needed flexible cables for mobile ship loaders.

Conditions:

• Saltwater exposure

• Continuous reeling/unreeling

• Heavy mechanical stress

Result:

• TPU jacket resisted saltwater and abrasion

• Maintained flexibility under cyclic motion

• Improved operational reliability

Frequently Asked Questions (FAQ)

What does SHD-GC stand for?

Shielded Heavy Duty Ground Check cable.

What is the purpose of a ground check conductor?

It monitors grounding continuity and triggers shutdown if a fault is detected.

Can SHD-GC cable be used underwater?

It is suitable for shallow submersion but not for long-term deep-water installation.

Why is EPR insulation used?

Because of its excellent dielectric strength and heat resistance under medium voltage stress.

What is the difference between SHD-GC and G-GC cable?

SHD-GC includes a ground check system, while G-GC does not.

Is TPU better than PVC for mining cables?

Yes, TPU offers better abrasion resistance, flexibility, and durability.

How long does SHD-GC cable last?

Service life depends on conditions, but TPU versions significantly outlast traditional rubber or PVC cables.

What industries use SHD-GC cables?

Mining, tunneling, ports, construction, and heavy industry.

Conclusion

TYPE SHD-GC 3/C 15kV TPU cable represents a high-performance solution for medium-voltage power delivery in the harshest environments. Its advanced construction—including shielding, EPR insulation, and ground check systems—ensures both reliability and safety.

Combined with a durable TPU jacket, it delivers superior resistance to abrasion, chemicals, and mechanical stress, making it ideal for mining and heavy-duty mobile equipment.

Selecting the right cable is not just a technical decision—it directly impacts safety, uptime, and operational cost. In demanding environments, SHD-GC cables provide a proven, long-lasting solution.
